1. Descriptions:

DTG (Direct-to-garment) is a method where an inkjet printer is used to print a design directly on a garment. With this printing process, the inks are absorbed by the fibers of the garment. With DTG, T-shirts’ customization is very simple.

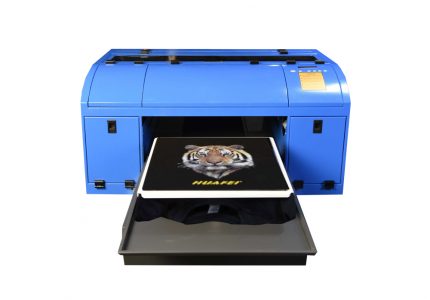

F5000 DTG Printer is A2 size and desktop, with advanced RIP for both white or light-color and dark T shirt DTG Printing. It is for sampling or customization of T-shirt.

Huafei F series desktop T-shirt printer is mainly for T-shirt Stores, E-Commences, Fashion Companies and Designers etc.

2. Features:

White Ink Circulation System, more stable;

HUAFEI DTG RIP10.1, Special designed and Easy to Use

White & CMYK at one pass, faster printing speed

Auto White & CMYK separate printing, advanced technology.

UPGRAGED HUAFEI control module, more precise for two times printing.

Laser sensor design protect printhead safer.

3. Specifications:

Printhead: Epson DX 5, 8*180 nozzle, VSDT

RIP software: HUAFEI RIP10.1  (both light & dark garment support)

Colors: CMYK+ 6* white channels ( dark garment support)

       Double CMYK (Light Garment Support)

Print Directions: Intelligent bi/single direction printing.

Speed: UP to 17 pcs per hour (Dark garments and A3 size)

Thickness of Garment: 0-25mm (sports sweater support)

Resolution: 2880*1440dpi

Ink: Water based textile pigment ink ( DuPont Inks are suggested)

Media: Cotton, Cotton/polyester Blends, Lycra, Viscose, Silk, Linen, Wool and more.

Other consumables: Pre treatment solution for dark & light garments, Cleaning ink

Height adjustment: manual operation

Head protection: Laser sensor automatic protection system.

Power: 110-220V, 50-60HZ, 75W

Interface: USB2.0/1.1, 1GB Ethernet, 320M memory

Computer System: Windows XP/ Win7, Win10

Working Environment:  Temperature: 15-35℃, Humidity: 20-80RH

Size and Weight:    Printer: 1450X860X405MM, 105kg

                               Package: 1480X920X500MM, 145kg

Pallets:  Standard:  350mm*400mm ( women size )

                Options:  380mm*480mm ( men size )

                               250mm*300mm ( Children size )

                               420mm * 800mm (Special size)
